Install EGS Controller Prerequisites

This topic describes the prerequisites to install Elastic GPU Service (EGS) Controller on a Kubernetes cluster.

EGS requires the following components:

  1. A monitoring stack for metrics collection (for example, kube-prometheus-stack).
  2. A Service Monitor to scrape the EGS controller metrics.
  3. PostgreSQL database to use the KubeTally (Cost Management) features.

Installation Options​

You can install the prerequisites using either of the following methods:

  1. Using the installation script provided in the egs-installation repository.
  2. Manually install the components using Helm charts.

Install Prometheus and PostgreSQL Using the Script​

The egs-installation repository includes the script to install EGS. You can use the egs-install-prerequisites.sh script to install prerequisites on the controller cluster. Modify the egs-installer-config.yaml to add the Prometheus and PostgreSQL parameters. To the install the additional applications, always set the enable_install_additional_apps parameter to true. The script installs and configures all the required components.

The following is an example configuration YAML to install Prometheus and PostgreSQL using the script:

# Enable additional applications installation
enable_install_additional_apps: true

# Enable custom applications
enable_custom_apps: true

# Command execution settings
run_commands: false

# Additional applications configuration
additional_apps:
  - name: "prometheus"
    skip_installation: false
    use_global_kubeconfig: true
    namespace: "egs-monitoring"
    release: "prometheus"
    chart: "kube-prometheus-stack"
    repo_url: "https://prometheus-community.github.io/helm-charts"
    version: "v45.0.0"
    specific_use_local_charts: true
    inline_values:
      prometheus:
        service:
          type: ClusterIP
        prometheusSpec:
          storageSpec: {}
          additionalScrapeConfigs:
          - job_name: tgi
            kubernetes_sd_configs:
            - role: endpoints
            relabel_configs:
            - source_labels: [__meta_kubernetes_pod_name]
              target_label: pod_name
            - source_labels: [__meta_kubernetes_pod_container_name]
              target_label: container_name
          - job_name: gpu-metrics
            scrape_interval: 1s
            metrics_path: /metrics
            scheme: http
            kubernetes_sd_configs:
            - role: endpoints
              namespaces:
                names:
                - egs-gpu-operator
            relabel_configs:
            - source_labels: [__meta_kubernetes_endpoints_name]
              action: drop
              regex: .*-node-feature-discovery-master
            - source_labels: [__meta_kubernetes_pod_node_name]
              action: replace
              target_label: kubernetes_node
      grafana:
        enabled: true
        grafana.ini:
          auth:
            disable_login_form: true
            disable_signout_menu: true
          auth.anonymous:
            enabled: true
            org_role: Viewer
        service:
          type: ClusterIP
        persistence:
          enabled: false
          size: 1Gi
    helm_flags: "--debug"
    verify_install: false
    verify_install_timeout: 600
    skip_on_verify_fail: true
    enable_troubleshoot: false

  - name: "postgresql"
    skip_installation: false
    use_global_kubeconfig: true
    namespace: "kt-postgresql"
    release: "kt-postgresql"
    chart: "postgresql"
    repo_url: "oci://registry-1.docker.io/bitnamicharts/postgresql"
    version: "16.2.1"
    specific_use_local_charts: true
    inline_values:
      auth:
        postgresPassword: "postgres"
        username: "postgres"
        password: "postgres"
        database: "postgres"
      primary:
        persistence:
          enabled: false
          size: 10Gi
    helm_flags: "--wait --debug"
    verify_install: true
    verify_install_timeout: 600
    skip_on_verify_fail: false

Run the installer script, using the following command:

./egs-install-prerequisites.sh --input-yaml egs-installer-config.yaml

The script installs the Prometheus Stack in the egs-monitoring namespace and PostgreSQL in the kt-postgresql namespace.

Install Prometheus Manually​

To install Prometheus manually in the existing set-up, follow these steps:

Install Prometheus-Kube-Stack​

The kube-prometheus-stack is the recommended monitoring solution as it provides a complete monitoring stack with Prometheus, Grafana, and AlertManager.

  1. Add Helm repository using the following command:

    helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
    helm repo update

  2. Install Kube-Prometheus-Stack with GPU metrics configuration. Use the following example configuration to create a gpu-monitoring-values.yaml file.

    # gpu-monitoring-values.yaml
    inline_values:
      prometheus:
        service:
          type: ClusterIP                     # Service type for Prometheus
        prometheusSpec:
          storageSpec: {}                     # Placeholder for storage configuration
          additionalScrapeConfigs:
          - job_name: tgi
            kubernetes_sd_configs:
            - role: endpoints
            relabel_configs:
            - source_labels: [__meta_kubernetes_pod_name]
              target_label: pod_name
            - source_labels: [__meta_kubernetes_pod_container_name]
              target_label: container_name
          - job_name: gpu-metrics
            scrape_interval: 1s
            metrics_path: /metrics
            scheme: http
            kubernetes_sd_configs:
            - role: endpoints
              namespaces:
                names:
                - egs-gpu-operator
            relabel_configs:
            - source_labels: [__meta_kubernetes_endpoints_name]
              action: drop
              regex: .*-node-feature-discovery-master
            - source_labels: [__meta_kubernetes_pod_node_name]
              action: replace
              target_label: kubernetes_node
      grafana:
        enabled: true                         # Enable Grafana
        grafana.ini:
          auth:
            disable_login_form: true
            disable_signout_menu: true
          auth.anonymous:
            enabled: true
            org_role: Viewer
        service:
          type: ClusterIP                  # Service type for Grafana
        persistence:
          enabled: false                      # Disable persistence
          size: 1Gi                           # Default persistence size

  3. Create a monitoring namespace using the following command:

    kubectl create namespace egs-monitoring

  4. Install the Prometheus stack using the following command:

    # Install kube-prometheus-stack with GPU metrics configuration
    helm install prometheus prometheus-community/kube-prometheus-stack \
    --namespace egs-monitoring \
    --values gpu-monitoring-values.yaml \
    --set prometheus.prometheusSpec.podMonitorSelectorNilUsesHelmValues=false \
    --set prometheus.prometheusSpec.serviceMonitorSelectorNilUsesHelmValues=false

Monitoring Configuration​

The EGS Controller exposes metrics on port 18080 and requires proper monitoring configuration to be scraped by Prometheus. To create a Service Monitor and Pod Monitor manually, follow the below steps:

Service Monitor Configuration​

note

You can perform the below installation steps before the EGS Controller installation. The Service Monitor will be active after the installation.

Create a Service Monitor to scrape metrics from the EGS Controller service. Use the following example configuration to create a servicemonitor.yaml file:

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: kubeslice-controller-manager-monitor
  namespace: egs-monitoring  # NAMESPACE: Change this to your monitoring namespace
  labels:
    app.kubernetes.io/instance: kube-prometheus-stack  # PROMETHEUS_INSTANCE: Change to your Prometheus instance
    release: prometheus  # PROMETHEUS_RELEASE: Change to your Prometheus release name
spec:
  endpoints:
    - interval: 30s  # SCRAPE_INTERVAL: How often to collect metrics (30s, 15s, 60s, etc.)
      port: metrics  # Port name where metrics are exposed (port 18080)
      path: /metrics  # METRICS_PATH: Path where metrics are exposed (default: /metrics)
      scrapeTimeout: 10s  # SCRAPE_TIMEOUT: Maximum time to wait for metrics response
      scheme: http  # SCHEME: Use http for port 18080
  namespaceSelector:
    matchNames:
      - kubeslice-controller  # KUBESLICE_CONTROLLER_NAMESPACE: Namespace where controller is deployed
  selector:
    matchLabels:
      control-plane: controller-manager  # Matches the service selector

Pod Monitor Configuration​

Create a Pod Monitor for direct pod metrics collection. Use the following example configuration to create a podmonitor.yaml file:

apiVersion: monitoring.coreos.com/v1
kind: PodMonitor
metadata:
  name: kubeslice-controller-manager-pod-monitor
  namespace: egs-monitoring  # NAMESPACE: Change this to your monitoring namespace
  labels:
    app.kubernetes.io/instance: kube-prometheus-stack  # PROMETHEUS_INSTANCE: Change to your Prometheus instance
    release: prometheus  # PROMETHEUS_RELEASE: Change to your Prometheus release name
spec:
  selector:
    matchLabels:
      control-plane: controller-manager  # Matches the pod labels
  namespaceSelector:
    matchNames:
      - kubeslice-controller  # KUBESLICE_CONTROLLER_NAMESPACE: Namespace where controller is deployed
  podMetricsEndpoints:
    - interval: 30s  # SCRAPE_INTERVAL: How often to collect metrics (30s, 15s, 60s, etc.)
      port: "18080"  # PORT: Direct port number as string (matches prometheus.io/port annotation)
      path: /metrics  # METRICS_PATH: Path where metrics are exposed (default: /metrics)
      scrapeTimeout: 10s  # SCRAPE_TIMEOUT: Maximum time to wait for metrics response
      scheme: http  # SCHEME: Use http for direct pod access

Apply the Configuration​

Apply the servicemonitor.yaml file and podmonitor.yaml file using the following command:

kubectl apply -f servicemonitor.yaml
kubectl apply -f podmonitor.yaml

PostgreSQL Database Setup​

The EGS Controller uses PostgreSQL for KubeTally functionality, which handles chargeback and metrics storage.

You have two options for PostgreSQL deployment:

  1. Internal PostgreSQL setup for development and testing purposes.
  2. External PostgreSQL setup for production environments.

Internal PostgreSQL Deployment​

  1. Install PostgreSQL using Helm.

    1. Add Helm repository using the following command:

      helm repo add kubeslice-egs-helm-ent-prod https://kubeslice.aveshalabs.io/repository/kubeslice-egs-helm-ent-prod/
      helm repo update

    2. Create a kt-postgresql namespace using the following command:

      kubectl create namespace kt-postgresql

    3. Install PostgreSQL using the following command:

      helm install kt-postgresql kubeslice-egs-helm-ent-prod/postgresql \
        --namespace kt-postgresql \
        --set auth.postgresPassword=postgres \
        --set auth.username=postgres \
        --set auth.database=postgres \
        --set primary.persistence.enabled=true \
        --set primary.persistence.size=10Gi

  2. Create a database credentials secrets using the following commands:

    # Get PostgreSQL credentials
    export POSTGRES_PASSWORD=$(kubectl get secret --namespace kt-postgresql kt-postgresql -o jsonpath="{.data.postgres-password}" | base64 -d)
    export POSTGRES_HOST="kt-postgresql.kt-postgresql.svc.cluster.local"
    export POSTGRES_PORT="5432"
    export POSTGRES_DB="postgres"

    # Create secret for EGS Controller
    kubectl create secret generic kubetally-db-credentials \
        --from-literal=postgresAddr=$POSTGRES_HOST \
        --from-literal=postgresPort=$POSTGRES_PORT \
        --from-literal=postgresUser=postgres \
        --from-literal=postgresPassword=$POSTGRES_PASSWORD \
        --from-literal=postgresDB=$POSTGRES_DB \
        --from-literal=postgresSslmode=disable \
        -n kubeslice-controller

External PostgreSQL Deployment​

Prerequisites​

  • PostgreSQL 12+ with SSL support
  • Database named kubetally
  • User with appropriate permissions
  • Network access from the Kubernetes cluster
  • Install PostgreSQL using Helm.

  1. Install PostgreSQL using Helm.

    1. Add Helm repository using the following command:

      helm repo add kubeslice-egs-helm-ent-prod https://kubeslice.aveshalabs.io/repository/kubeslice-egs-helm-ent-prod/
      helm repo update

    2. Create a kt-postgresql namespace using the following command:

      kubectl create namespace kt-postgresql

    3. Install PostgreSQL using the following command:

      helm install kt-postgresql oci://registry-1.docker.io/bitnamicharts/postgresql
      --namespace kt-postgresql
      --version 16.2.1
      --set auth.postgresPassword=postgres
      --set auth.username=postgres
      --set auth.database=postgres
      --set primary.persistence.enabled=false
      --set primary.persistence.size=10Gi

  2. Create external database secrets using the following command:

    kubectl create secret generic kubetally-db-credentials \
    --from-literal=postgres-addr=your-external-postgres-host \
    --from-literal=postgres-port=5432 \
    --from-literal=postgres-user=your-username \
    --from-literal=postgres-password=your-password \
    --from-literal=postgres-db=your-database-name \
    --from-literal=postgres-sslmode=require \
    -n kubeslice-controller

  3. The EGS Controller automatically creates the required database schema when it starts. Ensure the database user has the following permissions:


    -- Connect to your PostgreSQL instance
    \c <your-database-name>

     -- Grant necessary permissions
     GRANT CREATE ON DATABASE your-database-name TO your_username;
     GRANT ALL PRIVILEGES ON ALL TABLES IN SCHEMA public TO your_username;
     GRANT ALL PRIVILEGES ON ALL SEQUENCES IN SCHEMA public TO your_username;

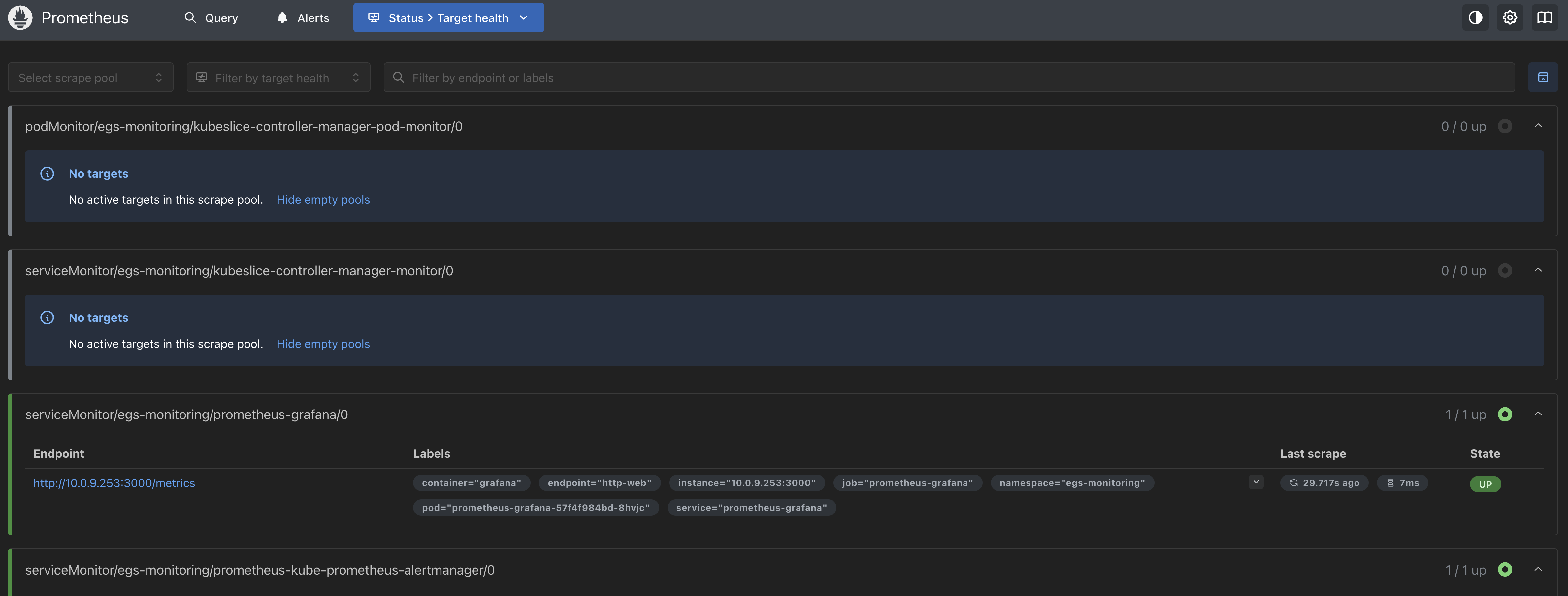

Verify the Deployment​

Verify Prometheus Configuration​

Use the following command to check if ServiceMonitor are created:

kubectl get servicemonitor -n egs-monitoring

Example Output

NAME                         AGE
kubeslice-controller-manager-monitor         38m
prometheus-grafana                  40m
prometheus-kube-prometheus-alertmanager       40m
prometheus-kube-prometheus-apiserver         40m
prometheus-kube-prometheus-coredns          40m
prometheus-kube-prometheus-kube-controller-manager  40m
prometheus-kube-prometheus-kube-etcd         40m
prometheus-kube-prometheus-kube-proxy        40m
prometheus-kube-prometheus-kube-scheduler      40m
prometheus-kube-prometheus-kubelet          40m
prometheus-kube-prometheus-operator         40m
prometheus-kube-prometheus-prometheus        40m
prometheus-kube-state-metrics            40m
prometheus-prometheus-node-exporter         40m

Use the following command to check Prometheus targets:

kubectl port-forward svc/prometheus-operated 9090:9090 -n egs-monitoring

For example, Prometheus targets can be accessed at http://localhost:9090/targets.

The following figure shows the Service Monitor for EGS Controller in Prometheus targets:

verify

note

If the EGS Controller is not deployed, the endpoints will not be active. After the EGS Controller installation, the endpoints will be active.

Access the Grafana Dashboard​

Grafana can be accessed using port forwarding. Use the following command to access Grafana:

kubectl port-forward svc/prometheus-grafana 3000:80 -n egs-monitoring

For example, Grafana can be accessed at http://localhost:3000.

The default username is admin and the password is prom-operator. You can change the password after the first login.

Verify the PostgreSQL Connection​

  1. Use the following command to test the internal PostgreSQL connection:

    # Test internal PostgreSQL connection
    kubectl run postgresql-client --rm --tty -i --restart='Never' \
      --namespace kt-postgresql \
      --image docker.io/bitnami/postgresql:latest \
      --env="PGPASSWORD=$POSTGRES_PASSWORD" \
      --command -- psql --host kt-postgresql -U postgres -d postgres -p 5432

  2. Use the following command to list databases:

    \l

    Example Output

                            List of databases
    Name  | Owner  | Encoding | Locale Provider |  Collate  |  Ctype  | Locale | ICU Rules |  Access privileges
    -----------+----------+----------+-----------------+-------------+-------------+--------+-----------+-----------------------
    postgres | postgres | UTF8   | libc      | en_US.UTF-8 | en_US.UTF-8 |    |      |
    template0 | postgres | UTF8   | libc      | en_US.UTF-8 | en_US.UTF-8 |    |      | =c/postgres     +
       |     |     |         |       |       |    |      | postgres=CTc/postgres
    template1 | postgres | UTF8   | libc      | en_US.UTF-8 | en_US.UTF-8 |    |      | =c/postgres     +
       |     |     |         |       |       |    |      | postgres=CTc/postgres
    (3 rows)

  3. Use the following command to test external PostgreSQL connection (if applicable):

    # Test external PostgreSQL connection (if applicable)
    kubectl run postgresql-client --rm --tty -i --restart='Never' \
      --image docker.io/bitnami/postgresql:latest \
      --env="PGPASSWORD=your_password" \
      --command -- psql --host your-external-host -U your-username -d your-database-name -p 5432
Copyright © Avesha 2025. All rights reserved.  Terms and Conditions  and  Privacy Policy
