Multi-Cluster Slice: BookInfo Deployment

Introduction​

BookInfo is a sample application from Istio that is composed of four separate microservices: productpage, details, reviews, and ratings. In this topic, we will use the BookInfo application to demonstrate inter-slice communication.

Objective​

This tutorial is designed to aid you in improving your understanding of deploying applications.

Prerequisites​

Before you begin, ensure the following prerequisites are met:

  • You have a KubeSlice configuration with two or more clusters registered. For more information, see Install KubeSlice.
  • You have Istio installed in all registered worker clusters. For more information, see Install Istio.
  • Before creating a slice, create the bookinfo namespace in all the participating worker clusters. Use the following command to create the bookinfo namespace:
    kubectl create ns bookinfo
  • Use the following command to inject the istio label to the bookinfo namespace:
    kubectl label namespace bookinfo istio-injection=enabled
  • You have the slice created across the worker clusters. For more information, see creating a slice.

Create the BookInfo Deployment YAML Files​

Using the templates below, create the configuration YAML files to deploy the BookInfo application.

info

These instructions will guide you through deploying the productpage service to a cluster we will refer to as the productpage cluster. The other services and service exports will be deployed to a cluster referred to here as the services cluster.

Product Page​

Create the productpage.yaml file using the below template. All the fields in the template remain the same except for the <slice name>. Replace the <slice name> with the name of your slice.

##################################################################################################
# Productpage Service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
 name: productpage
 labels:
   app: productpage
   service: productpage
spec:
 type: NodePort
 ports:
 - port: 9080
   name: http
 selector:
   app: productpage
---
apiVersion: v1
kind: ServiceAccount
metadata:
 name: bookinfo-productpage
 labels:
   account: productpage
---
apiVersion: apps/v1
kind: Deployment
metadata:
 name: productpage-v1
 labels:
   app: productpage
   version: v1
spec:
 replicas: 1
 selector:
   matchLabels:
     app: productpage
     version: v1
 template:
   metadata:
     labels:
       app: productpage
       version: v1
   spec:
     serviceAccountName: bookinfo-productpage
     containers:
     - name: productpage
       image: docker.io/istio/examples-bookinfo-productpage-v1:1.16.2
       imagePullPolicy: IfNotPresent
       ports:
       - containerPort: 9080
       volumeMounts:
       - name: tmp
         mountPath: /tmp
       securityContext:
         runAsUser: 1000
       env:
       - name: REVIEWS_HOSTNAME
         value: reviews.bookinfo.svc.slice.local
       - name: DETAILS_HOSTNAME
         value: details.bookinfo.svc.slice.local
     - name: netshoot
       image: nicolaka/netshoot
       imagePullPolicy: IfNotPresent
       command: ["/bin/sleep", "3650d"]
       securityContext:
         capabilities:
           add: ["NET_ADMIN"]
         allowPrivilegeEscalation: true
         privileged: true
     volumes:
     - name: tmp
       emptyDir: {}

Details​

Create the details.yaml file using the below template. All the fields in the template remain the same except for the <slice name>. Replace the <slice name> with the name of your slice.

##################################################################################################
# Details Service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
 name: details
 labels:
   app: details
   service: details
spec:
 ports:
 - port: 9080
   name: http
 selector:
   app: details
---
apiVersion: v1
kind: ServiceAccount
metadata:
 name: bookinfo-details
 labels:
   account: details
---
apiVersion: apps/v1
kind: Deployment
metadata:
 name: details-v1
 labels:
   app: details
   version: v1
spec:
 replicas: 1
 selector:
   matchLabels:
     app: details
     version: v1
 template:
   metadata:
     labels:
       app: details
       version: v1
   spec:
     serviceAccountName: bookinfo-details
     containers:
     - name: details
       image: docker.io/istio/examples-bookinfo-details-v1:1.16.2
       imagePullPolicy: IfNotPresent
       ports:
       - containerPort: 9080
       securityContext:
         runAsUser: 1000
     - name: netshoot
       image: nicolaka/netshoot
       imagePullPolicy: IfNotPresent
       command: ["/bin/sleep", "3650d"]
       securityContext:
         capabilities:
           add: ["NET_ADMIN"]
         allowPrivilegeEscalation: true
         privileged: true

Ratings​

Create the ratings.yaml file using the below template. All the fields in the template remain the same except for the <slice name>. Replace the <slice name> with the name of your slice.

##################################################################################################
# Ratings Service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
 name: ratings
 labels:
   app: ratings
   service: ratings
spec:
 ports:
 - port: 9080
   name: http
 selector:
   app: ratings
---
apiVersion: v1
kind: ServiceAccount
metadata:
 name: bookinfo-ratings
 labels:
   account: ratings
---
apiVersion: apps/v1
kind: Deployment
metadata:
 name: ratings-v1
 labels:
   app: ratings
   version: v1
spec:
 replicas: 1
 selector:
   matchLabels:
     app: ratings
     version: v1
 template:
   metadata:
     labels:
       app: ratings
       version: v1
   spec:
     serviceAccountName: bookinfo-ratings
     containers:
     - name: ratings
       image: docker.io/istio/examples-bookinfo-ratings-v1:1.16.2
       imagePullPolicy: IfNotPresent
       ports:
       - containerPort: 9080
       securityContext:
         runAsUser: 1000
     - name: netshoot
       image: nicolaka/netshoot
       imagePullPolicy: IfNotPresent
       command: ["/bin/sleep", "3650d"]
       securityContext:
         capabilities:
           add: ["NET_ADMIN"]
         allowPrivilegeEscalation: true
         privileged: true

Reviews​

Create the reviews.yaml file using the below template. All the fields in the template remain the same except for the <slice name>. Replace the <slice name> with the name of your slice.

##################################################################################################
# Reviews Service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
 name: reviews
 labels:
   app: reviews
   service: reviews
spec:
 ports:
 - port: 9080
   name: http
 selector:
   app: reviews
---
apiVersion: v1
kind: ServiceAccount
metadata:
 name: bookinfo-reviews
 labels:
   account: reviews
---
apiVersion: apps/v1
kind: Deployment
metadata:
 name: reviews-v3
 labels:
   app: reviews
   version: v3
spec:
 replicas: 1
 selector:
   matchLabels:
     app: reviews
     version: v3
 template:
   metadata:
     labels:
       app: reviews
       version: v3
   spec:
     serviceAccountName: bookinfo-reviews
     containers:
     - name: reviews
       image: docker.io/istio/examples-bookinfo-reviews-v3:1.16.2
       imagePullPolicy: IfNotPresent
       env:
       - name: LOG_DIR
         value: "/tmp/logs"
       ports:
       - containerPort: 9080
       volumeMounts:
       - name: tmp
         mountPath: /tmp
       - name: wlp-output
         mountPath: /opt/ibm/wlp/output
       securityContext:
         runAsUser: 1000
     - name: netshoot
       image: nicolaka/netshoot
       imagePullPolicy: IfNotPresent
       command: ["/bin/sleep", "3650d"]
       securityContext:
         capabilities:
           add: ["NET_ADMIN"]
         allowPrivilegeEscalation: true
         privileged: true
     volumes:
     - name: wlp-output
       emptyDir: {}
     - name: tmp
       emptyDir: {}

ServiceExports​

Create the serviceexports.yaml file using the below template. All the fields in the template remain the same except for <slice name> instances. Replace the <slice name> with the name of your slice.

##################################################################################
# Details ServiceExport
##################################################################################
apiVersion: networking.kubeslice.io/v1beta1
kind: ServiceExport
metadata:
 name: details
spec:
 slice: <slice name>  #Replace Slice Name
 selector:
   matchLabels:
     app: details
 ingressEnabled: false
 ports:
 - name: http
   containerPort: 9080
   protocol: TCP
---
##################################################################################
# Reviews ServiceExport
##################################################################################
apiVersion: networking.kubeslice.io/v1beta1
kind: ServiceExport
metadata:
 name: reviews
spec:
 slice: <slice name>  #Replace Slice Name
 selector:
   matchLabels:
     app: reviews
 ingressEnabled: false
 ports:
 - name: http
   containerPort: 9080
   protocol: TCP

Deploy to the Productpage Cluster​

To deploy the productpage:

  1. Switch the context to the cluster you will be deploying the productpage using the following command:

    kubectx <services cluster>

  2. Apply the productpage.yaml file using the following command:

    kubectl apply -f productpage.yaml -n bookinfo

    Expected Output:

    service/productpage created
    serviceaccount/bookinfo-productpage created
    deployment.apps/productpage-v1 created

  3. Check if the deployed productpage pod is running on the cluster using the following command:

    kubectl get pods -n bookinfo

    Expected Output

    NAME                              READY   STATUS    RESTARTS   AGE
    productpage-v1-5cc46fc6dc-drd8b   4/4     Running   0          26h

Deploy to the Service Cluster​

Use the following command to ensure we are targeting the cluster we deploy reviews, details, and ratings to:

kubectx <services cluster>

Using the following commands, apply the details.yaml, ratings.yaml, reviews.yaml, and serviceexports.yaml files.

Use the following command to apply the details.yaml file.

kubectl apply -f details.yaml -n bookinfo

Expected Output

service/details created
serviceaccount/bookinfo-details created
deployment.apps/details-v1 created

Use the following command to apply the ratings.yaml file:

kubectl apply -f ratings.yaml -n bookinfo

Expected Output

service/ratings created
serviceaccount/bookinfo-ratings created
deployment.apps/ratings-v1 created

Use the following command to apply the reviews.yaml file:

kubectl apply -f reviews.yaml -n bookinfo

Expected Output

service/reviews created
serviceaccount/bookinfo-reviews created
deployment.apps/reviews-v3 created

Use the following command to verify if the deployed pods are running on the cluster:

kubectl get pods -n bookinfo

Expected Output

NAME                          READY   STATUS    RESTARTS   AGE
details-v1-557b474454-fbfhh   4/4     Running   0          26h
ratings-v1-5846f848bb-4dwtz   4/4     Running   0          26h
reviews-v3-64cf7654f4-cfqz8   4/4     Running   0          26h

Use the following command to apply serviceexports.yaml file:

kubectl apply -f serviceexports.yaml -n bookinfo

Expected Output

serviceexport.networking.kubeslice.io/details created
serviceexport.networking.kubeslice.io/reviews created

Validate the Services​

To validate the Details and Review services:

  1. Switch the context to the services cluster.

    kubectx <services cluster>

  2. Use the following command to verify the details and reviews services have been successfully exported to the KubeSlice configuration:

    kubectl get serviceexport -n bookinfo

    Expected Output

    NAME      SLICE   INGRESS  SERVICEPORT(S)   PORT(S)    ENDPOINTS   STATUS
    details   white   true                      9080/TCP   1           READY
    reviews   white   true                      9080/TCP   1           READY

Validate the Productpage on the Cloud Cluster​

To validate the Productpage service:

  1. Switch the context to the productpage cluster.

    kubectx <productpage cluster>

  2. Using the following command, verify the details and reviews service imports are present in the cluster:

    kubectl get serviceimport -n bookinfo

    Expected Output

    NAME      SLICE   PORT(S)    ENDPOINTS   STATUS
    details   white   9080/TCP   1           READY
    reviews   white   9080/TCP   1           READY

  3. Use the following command to check the exposed port for the productpage service.

    kubectl get services -n bookinfo

    Expected Output

    NAME          TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)          AGE
    details       ClusterIP   10.0.116.23    <none>        9080/TCP         2d2h
    productpage   NodePort    10.0.20.209    <none>        9080:31194/TCP   2d2h
    reviews       ClusterIP   10.0.146.220   <none>        9080/TCP         2d2h
    info

    Use the exposed port for the productpage service to visit the BookInfo webpage.

  4. To view the deployed BookInfo product page, we need the external IP address of an application node and the exposed port we just retrieved.

    info

    Take note of the external IP address of one of the application nodes to use it later.

    Use the following command to get your node details:

    kubectl get nodes -o wide

    Expected Output (your output will differ, here we are just focused on the external IP address).

    kubectl get nodes -o wide
    NAME                                                  STATUS   ROLES    AGE   VERSION             INTERNAL-IP   EXTERNAL-IP      OS-IMAGE
    KERNEL-VERSION   CONTAINER-RUNTIME
    gke-preprod-knative--preprod-knative--aba5a0cc-9jrq   Ready    <none>   27h   v1.20.15-gke.3600   10.6.0.4      35.231.181.81    Container-Optimized OS from Google   5.4.170+         containerd://1.4.8
    gke-preprod-knative--preprod-knative--aba5a0cc-xj3j   Ready    <none>   27h   v1.20.15-gke.3600   10.6.0.5      35.243.229.81    Container-Optimized OS from Google   5.4.170+         containerd://1.4.8
    gke-preprod-knative--preprod-knative--d19d3a9f-c32x   Ready    <none>   28h   v1.20.15-gke.3600   10.6.0.3      104.196.200.27   Container-Optimized OS from Google   5.4.170+         containerd://1.4.8

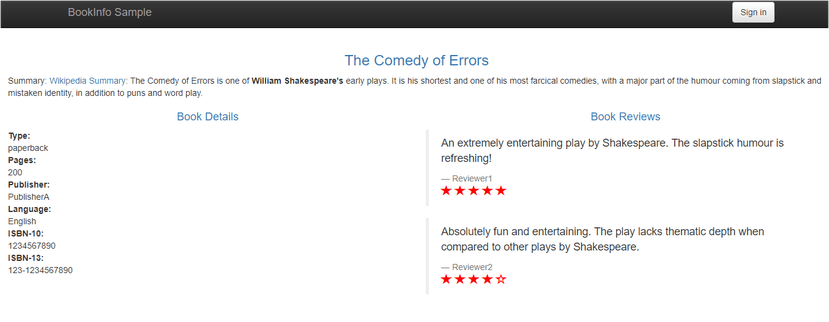

  5. Combine the external IP address the command returns with the port you retrieved in the last step in the format below. Visit the page in a browser to view your multi-cluster BookInfo deployment.

    http://<external ip>:<port>/productpage

    Example alt

success

You have successfully deployed the BookInfo application on a KubeSlice configuration containing at least two clusters.

Uninstall BookInfo​

To uninstall BookInfo from your KubeSlice configuration, the instructions in uninstall KubeSlice.
