Access the Obliq Console

After installing agents, you can access the Obliq console by using your virtual machine's IP address and 3000 as the port.

The access URL for the console is <virtual machine IP address>:3000.

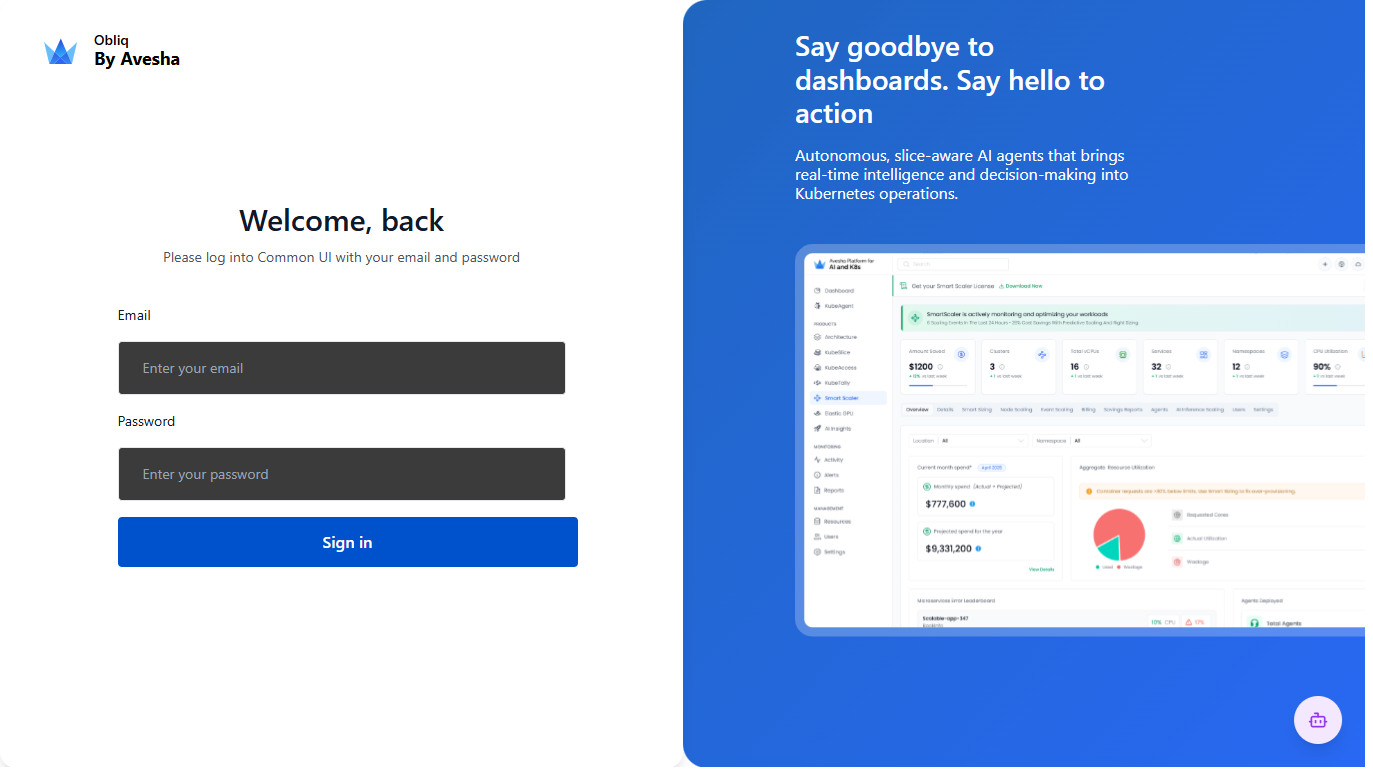

Go to the access URL on a web browser and use the following login credentials:

• Login name: admin@aveshasystems.com
• Password: admin123

Monitor the Obliq Control Plane

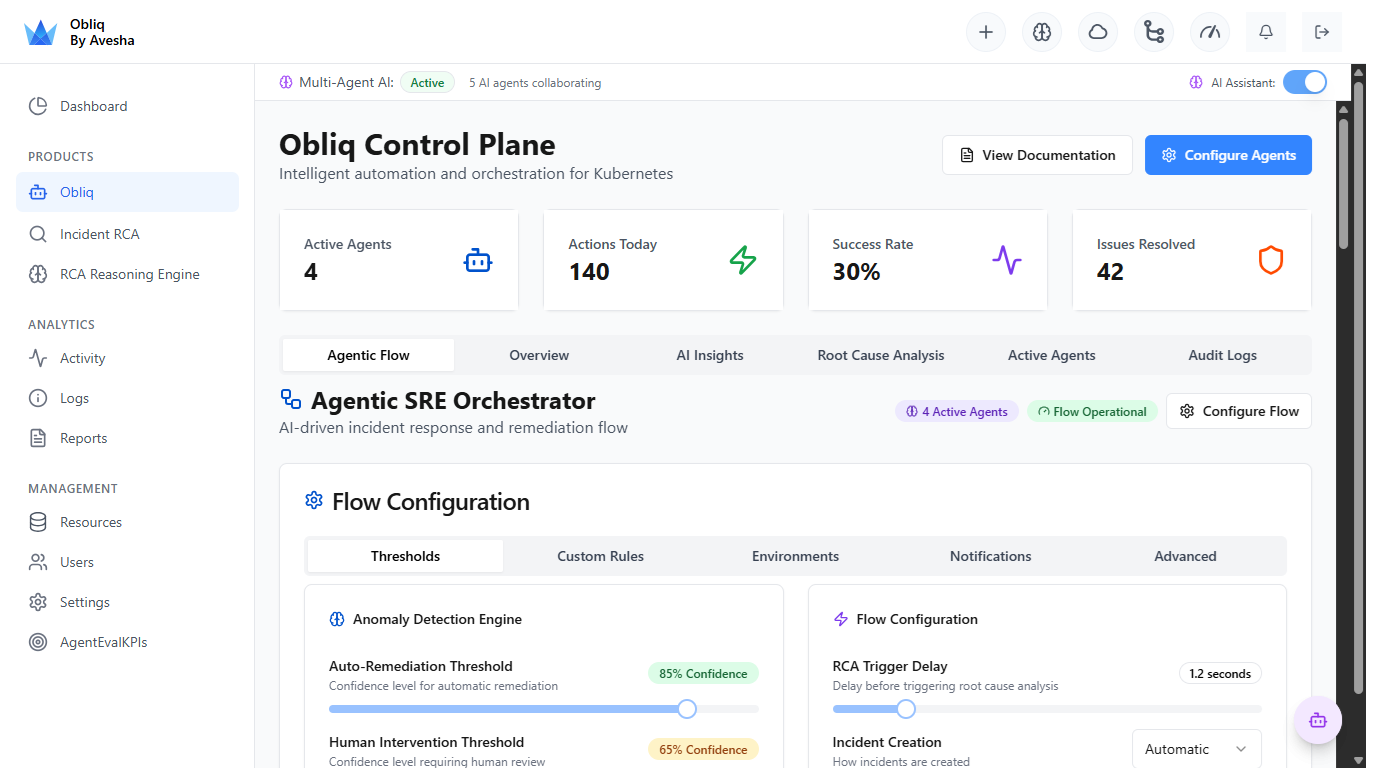

After you log into the console, you land into the control plane.

To monitor:

1. Monitor active agents, success rate, and issues resolved, and flow configuration on the top of the control plane.

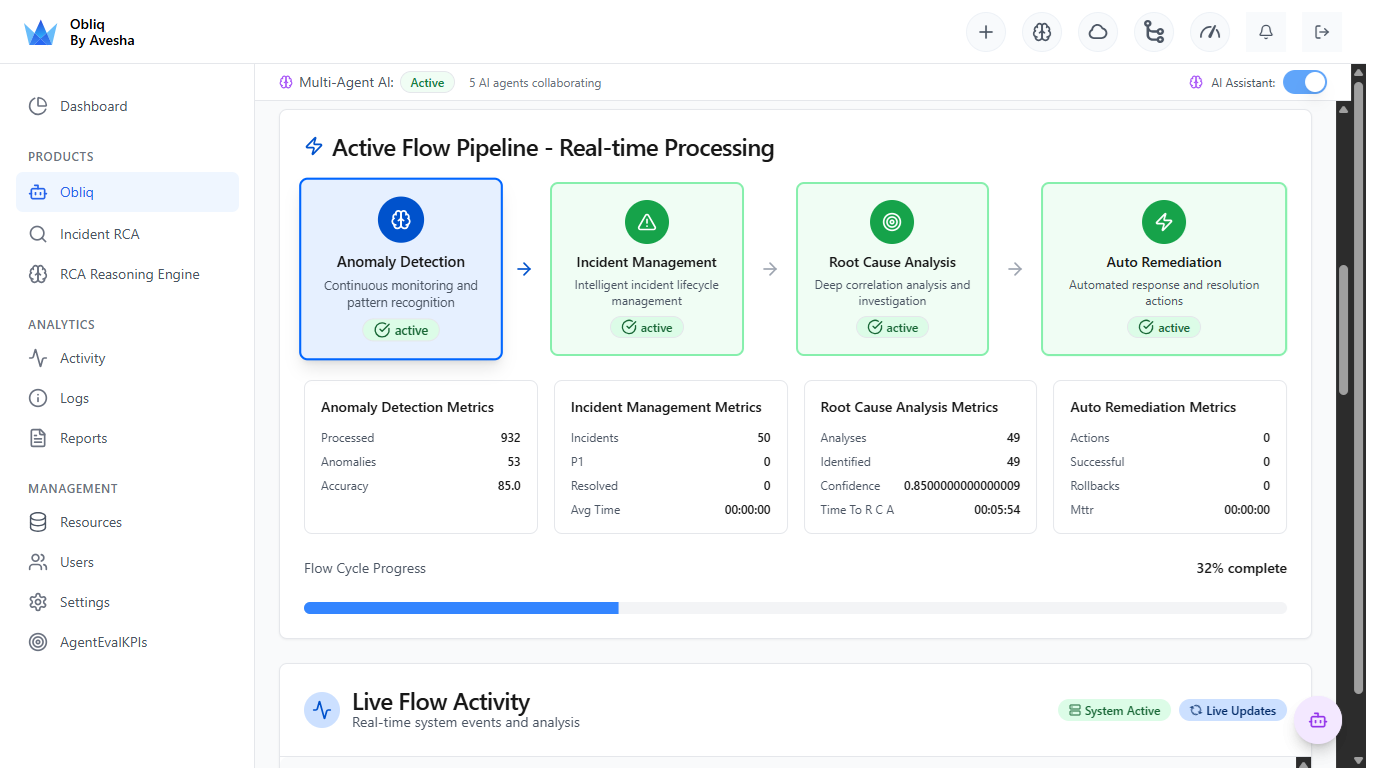

2. Scroll down to monitor the active flow pipeline that provides the real-time processing data.

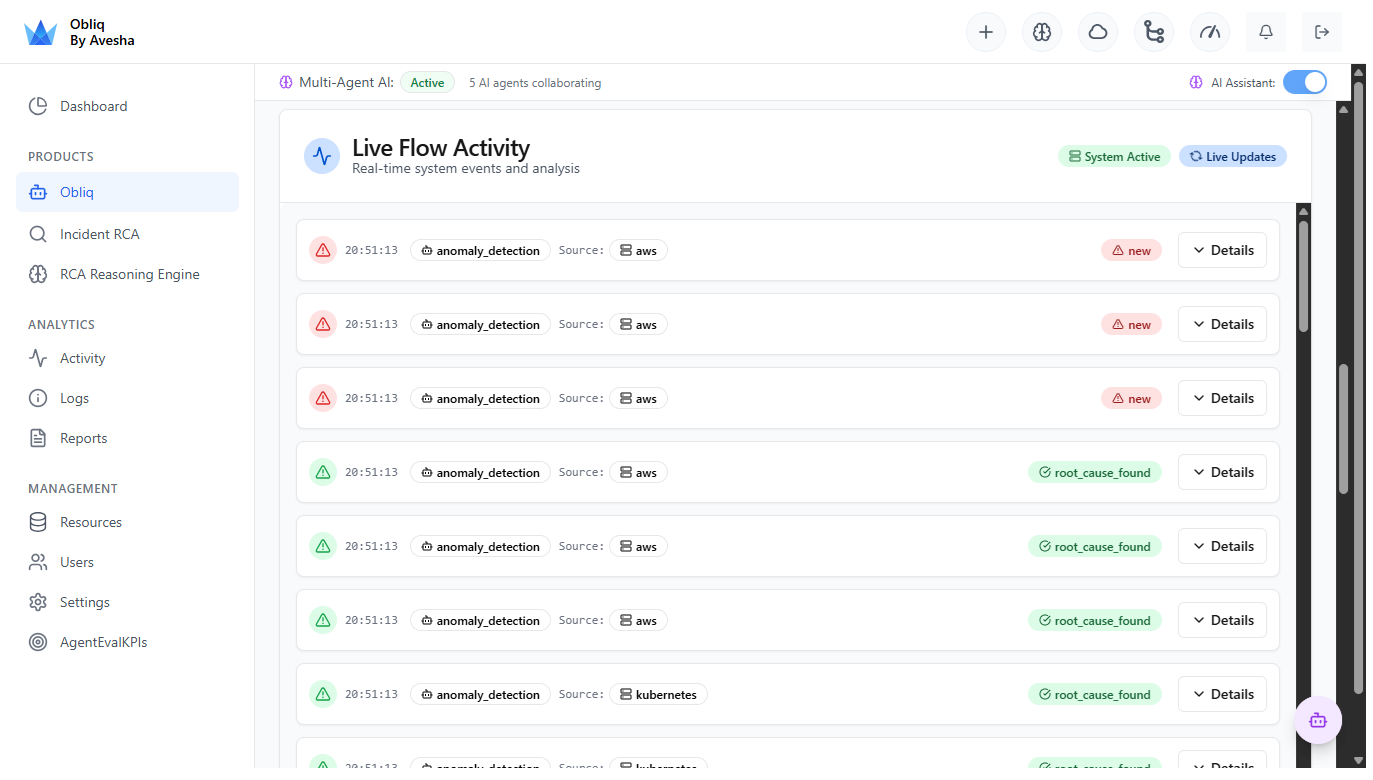

3. Scroll down further to monitor the live flow activity.

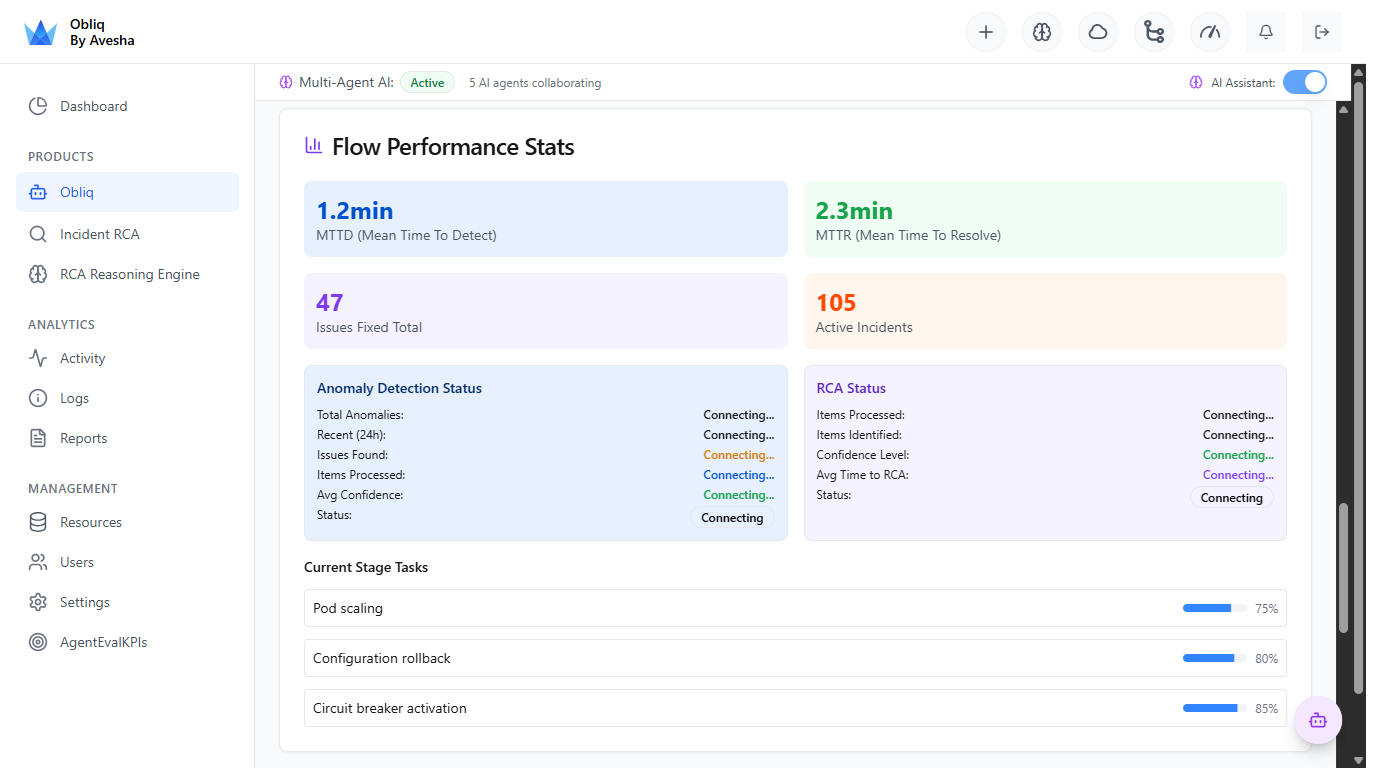

4. Scroll down again to monitor the live performance stats.

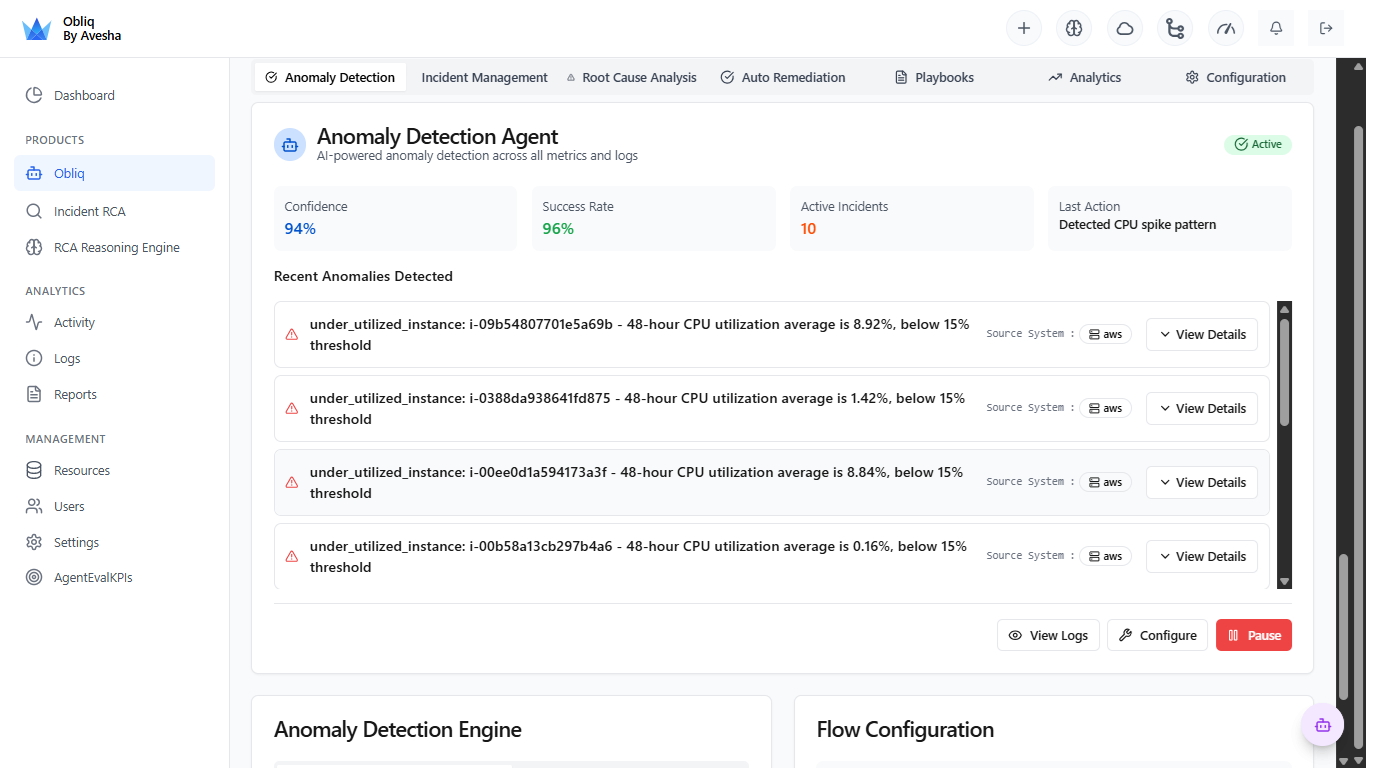

5. Scroll down to the bottom of the control plane to monitor anomaly detection. Go to the Incident Management tab to track incidents.
