Monitor AI Workloads

This topic describes the steps to view the deployed AI models. You can access the cluster namespaces using the workspace kubeconfig file received from your admin and using the EGS portal, you can deploy the AI workloads only in these namespaces.

info

Across our documentation, we refer to the workspace as the slice workspace. The two terms are used interchangeably.

info

• The user workspace is isolated from other users or workspaces. The GPR provisioned GPU nodes are available for the user for the duration of the GPR.
• Contact your admin for the kubeconfig file to access the cluster.

View AI Workloads

You can view AI workloads and associated GPU details running on the workspaces. EGS provides highly granular visualization for every AI workload and associated GPUs, you see these details:

• AI workloads list model, model configuration, and infrastructure committed for the workload (LLM training or fine-tuning job).
• Visibility into high-power usage GPU, high-temperature GPU. Generates alerts on high power/utilization levels.
• Visibility into GPU metrics dashboards for user's AI workloads parameters/GPU metrics.

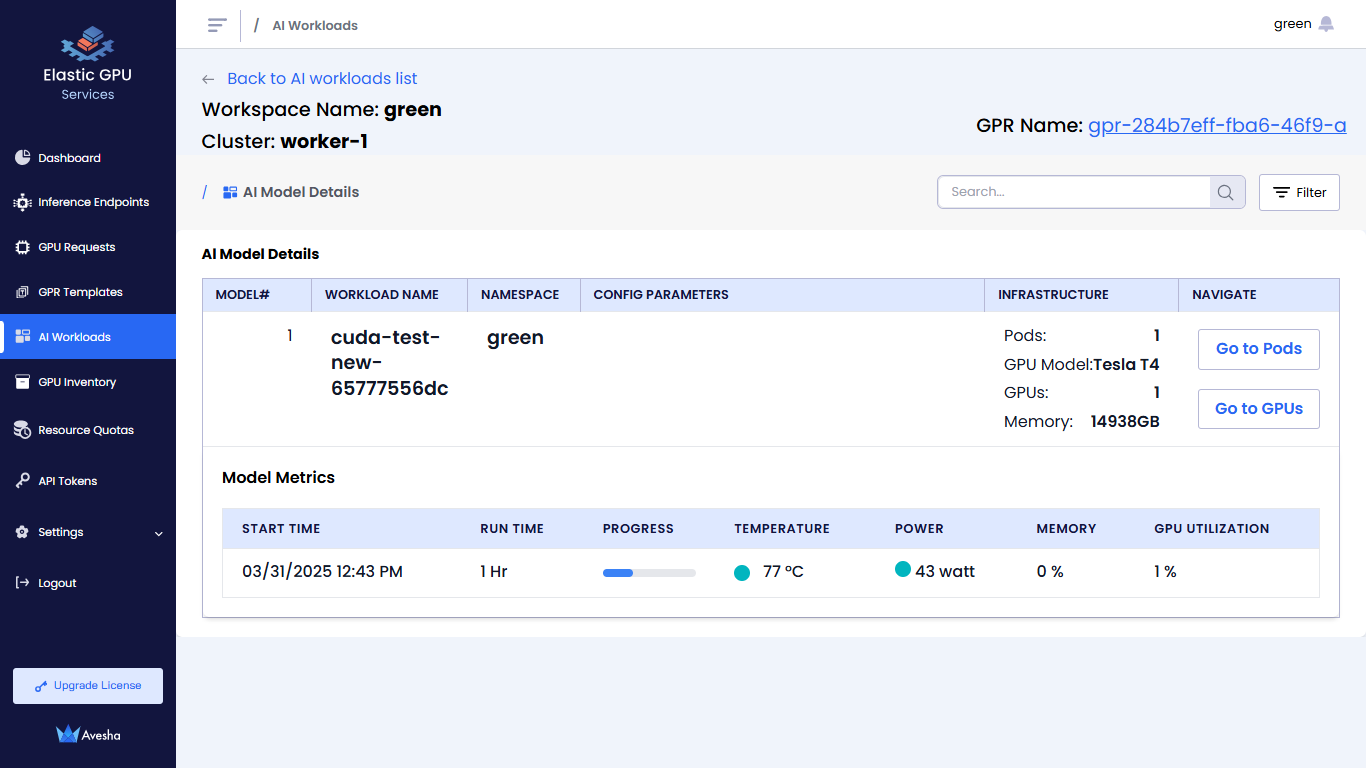

View Model Details

1. Go to AI Workloads on the left sidebar.

2. Select a workspace to view the AI workloads, and it:

   • Shows the model details and GPU infrastructure committed to the workload.
   • Shows model summary: high power GPU, high temperature GPU, and average utilization values.

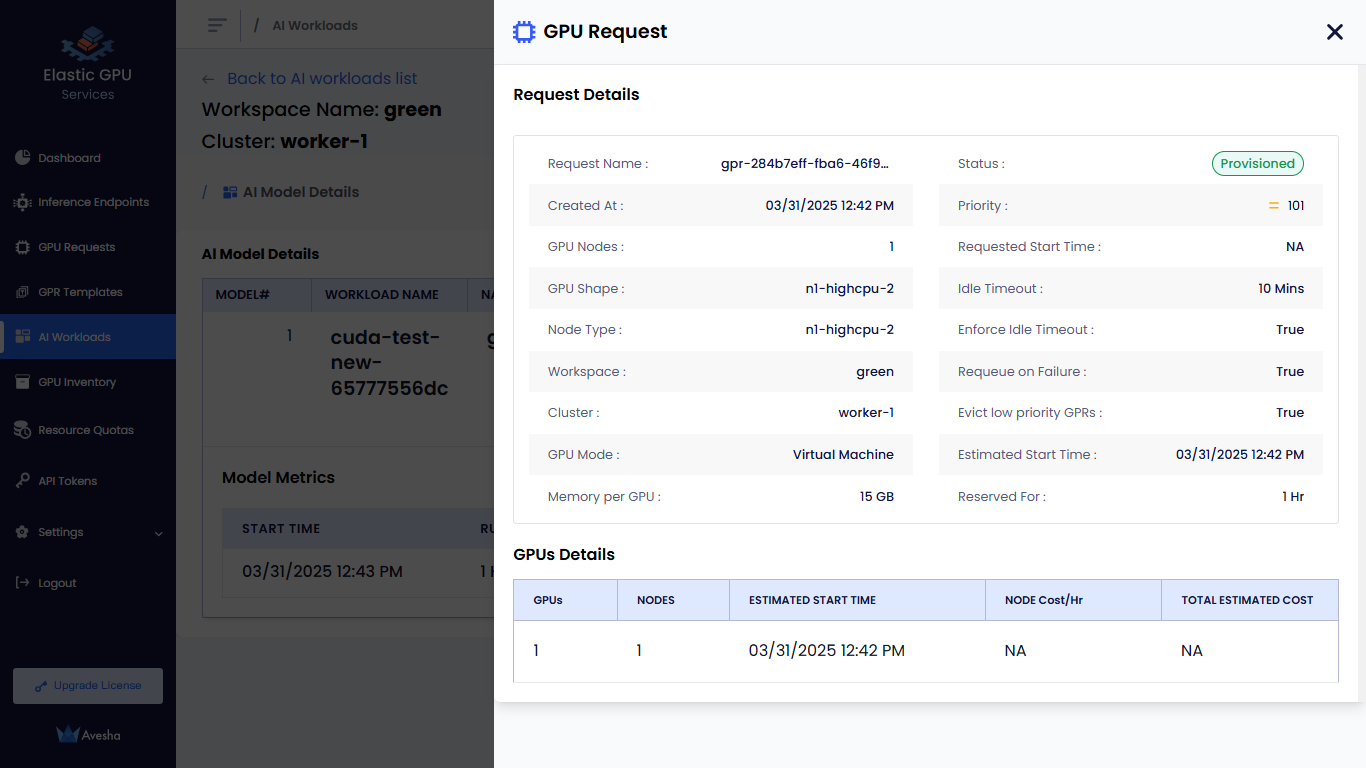

3. On the AI workloads page, to view the GPR details click on the GRP name on the top right.

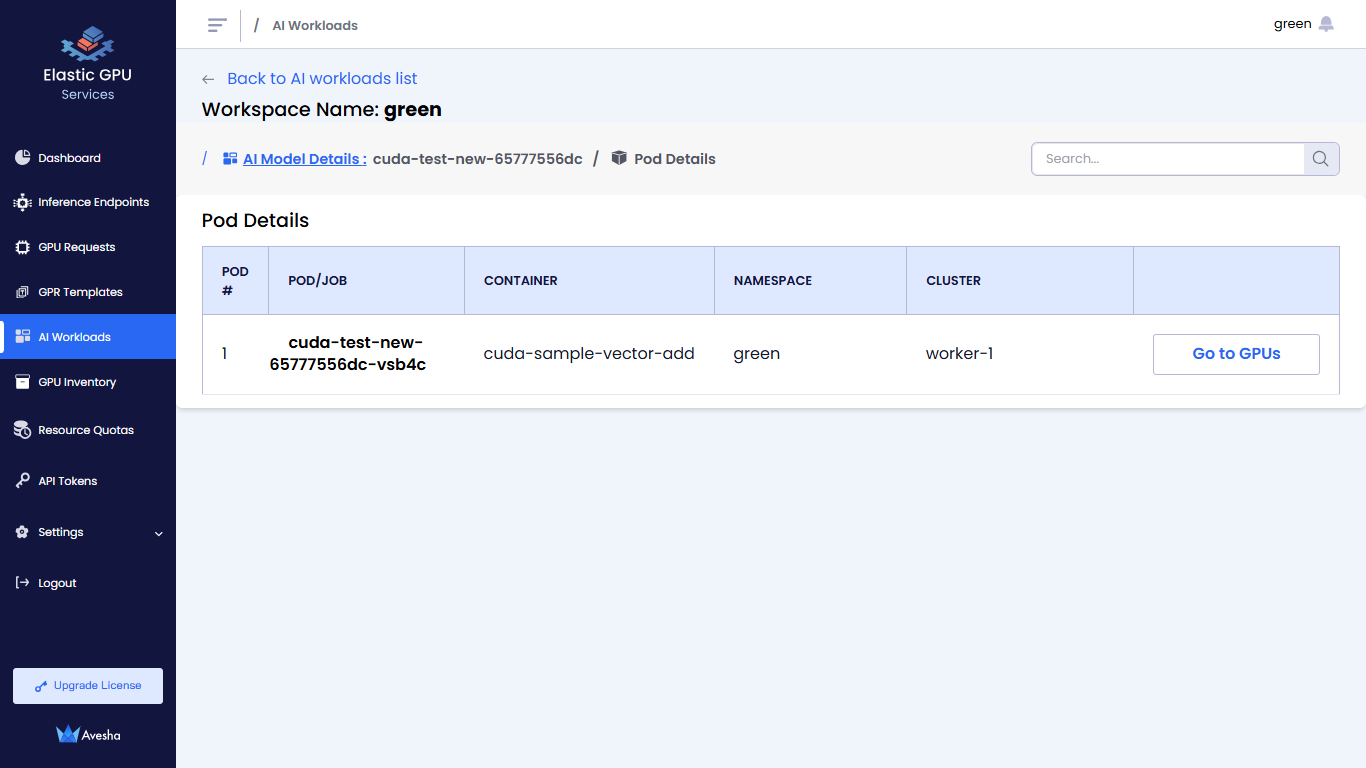

View Pods

To view pods:

1. Go to AI Workloads on the left sidebar.

2. Select a workspace to view AI workloads.

3. On the AI Model Details page, under NAVIGATE, click Go to Pods to view the pods running with GPUs on the workspace.

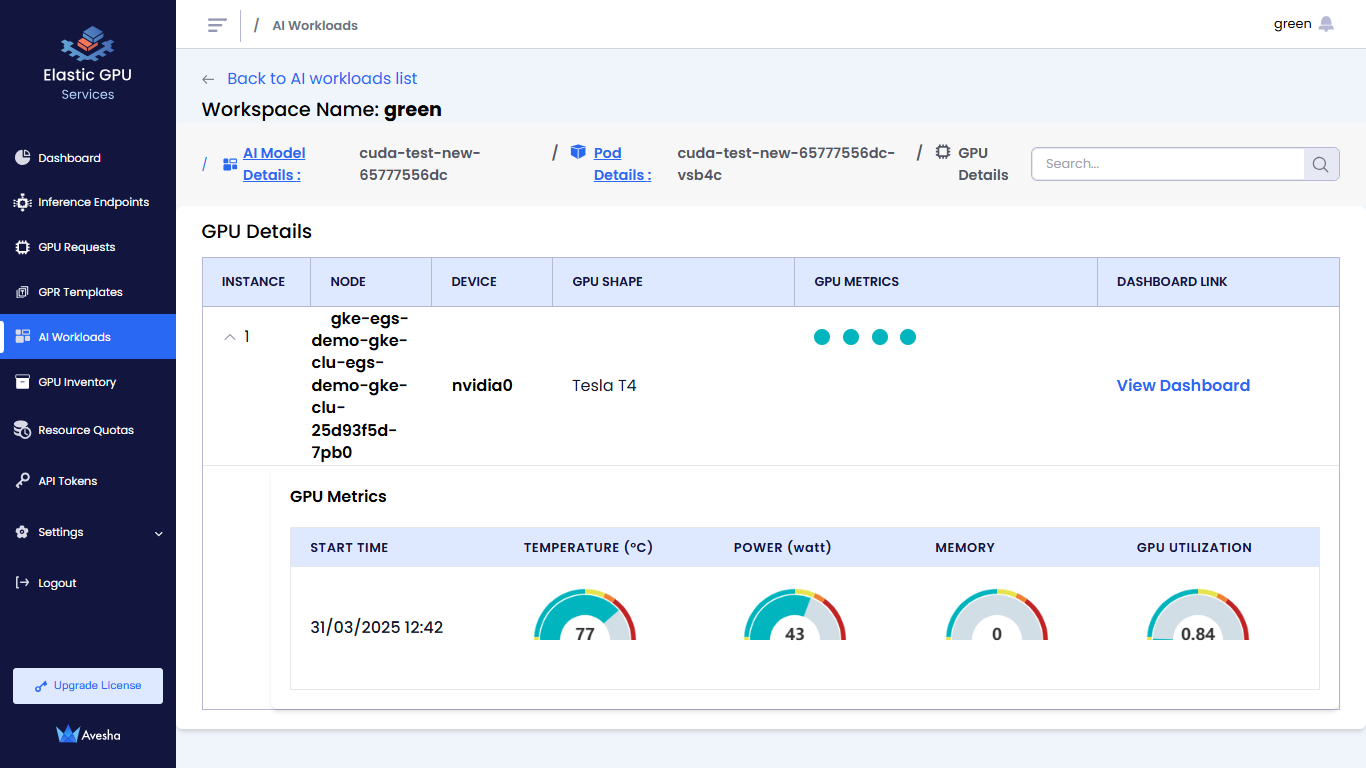

View GPUs

To view GPU:

1. Go to AI Workloads on the left sidebar.

2. Select a workspace to view AI workloads.

3. On the AI Model Details page, under NAVIGATE, click Go to GPUs to view the GPU details.

   The GPU Details section:

   • Shows sorted list of GPUs with high power and temperature GPUs at the top for quick access.

   • Shows the hotspot GPUs.

   • Shows the time-series data for the selected GPU device.
